Quick-Shock Rear Suspension Shock Absorber Assembly
MONROE SHOCKS/STRUTS
Part # : MON-15663
No prices availables
Select a store to see availability
Position: Rear
Free returns
Secure payment
Free In-Store Pickup
Product Details

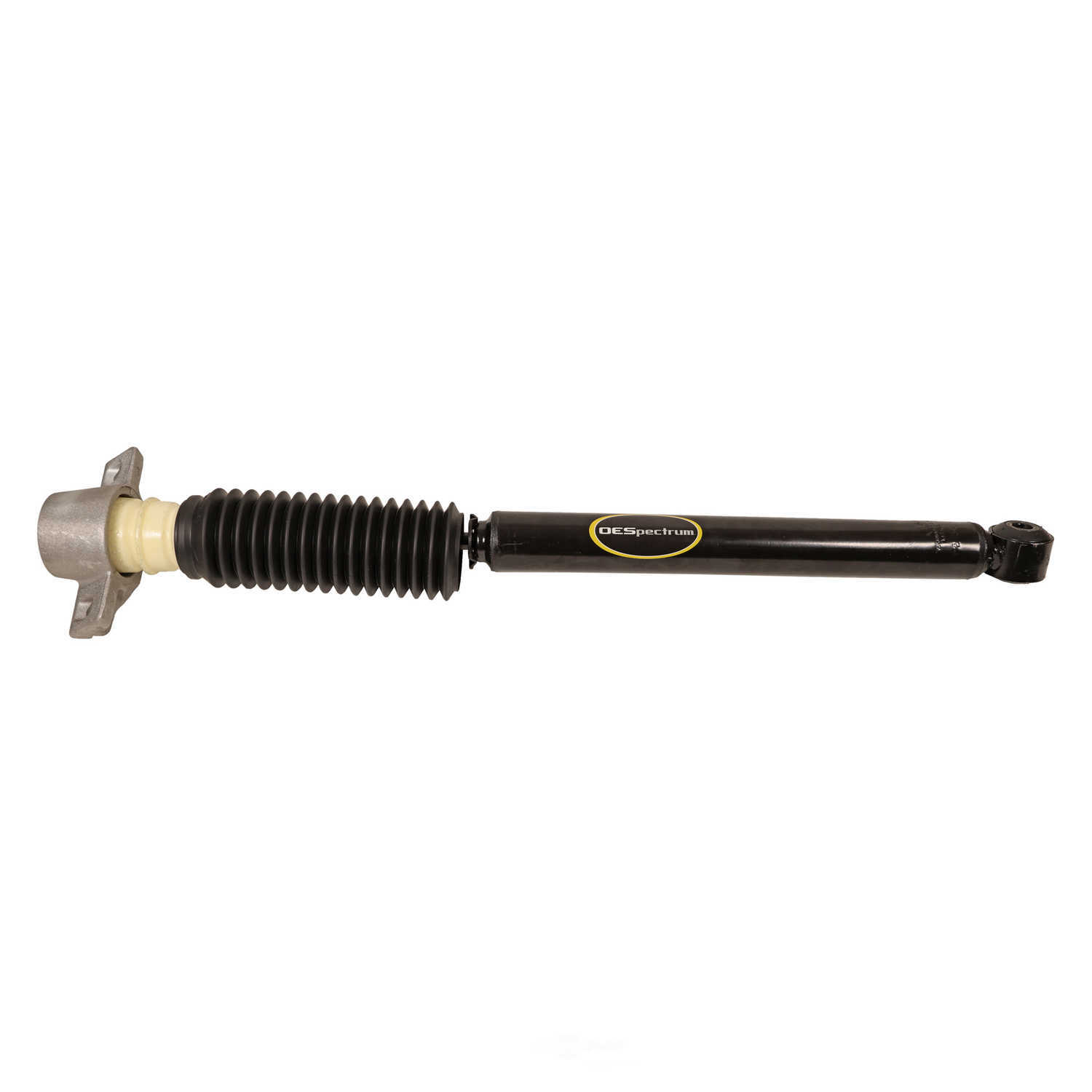

DescriptionMonroe Quick-Shock 15663 Rear Suspension Shock Absorber Assembly for Chevrolet Cruze
Features
- SAVES INSTALL TIME -- Simplifies the installation process with a preassembled upper mount, shock, compression bumper & dirt shield for a quick and easy replacement
- COMPLETE REPAIR -- Premium-quality preassembled upper strut mount matches the OE design and comes with new Monroe Strut-Mate® mounting components to include everything you need for the repair
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Brand InformationIncluding everything you need for a complete repair, the all new Monroe® OESpectrum® shock & mount assembly comes with a pre-assembled upper mount, shock, compression bumper and dirt shield to simplify the installation. Designed to deliver exceptional control under most driving conditions, Twin Technology Active Control System™ reduces noise vibration and harshness.
Specifications
| Body Diameter | 1.64 |
| Compressed Bumper Stop | Yes |
| Compressed Length | 15.8 |
| Dust Shield | Yes |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 25.64 |
| Lower Mount Code | LS43 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14mm Sleeve ID X 1 9/16" Sleeve OAL |
| Parts Pack(s) | None |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Travel Length | 9.64 |
| Upper Mount Code | S1 |
| Upper Mount Type | Stem Mount - 1 3/16" Stem Length X M10 Thread Pitch |
