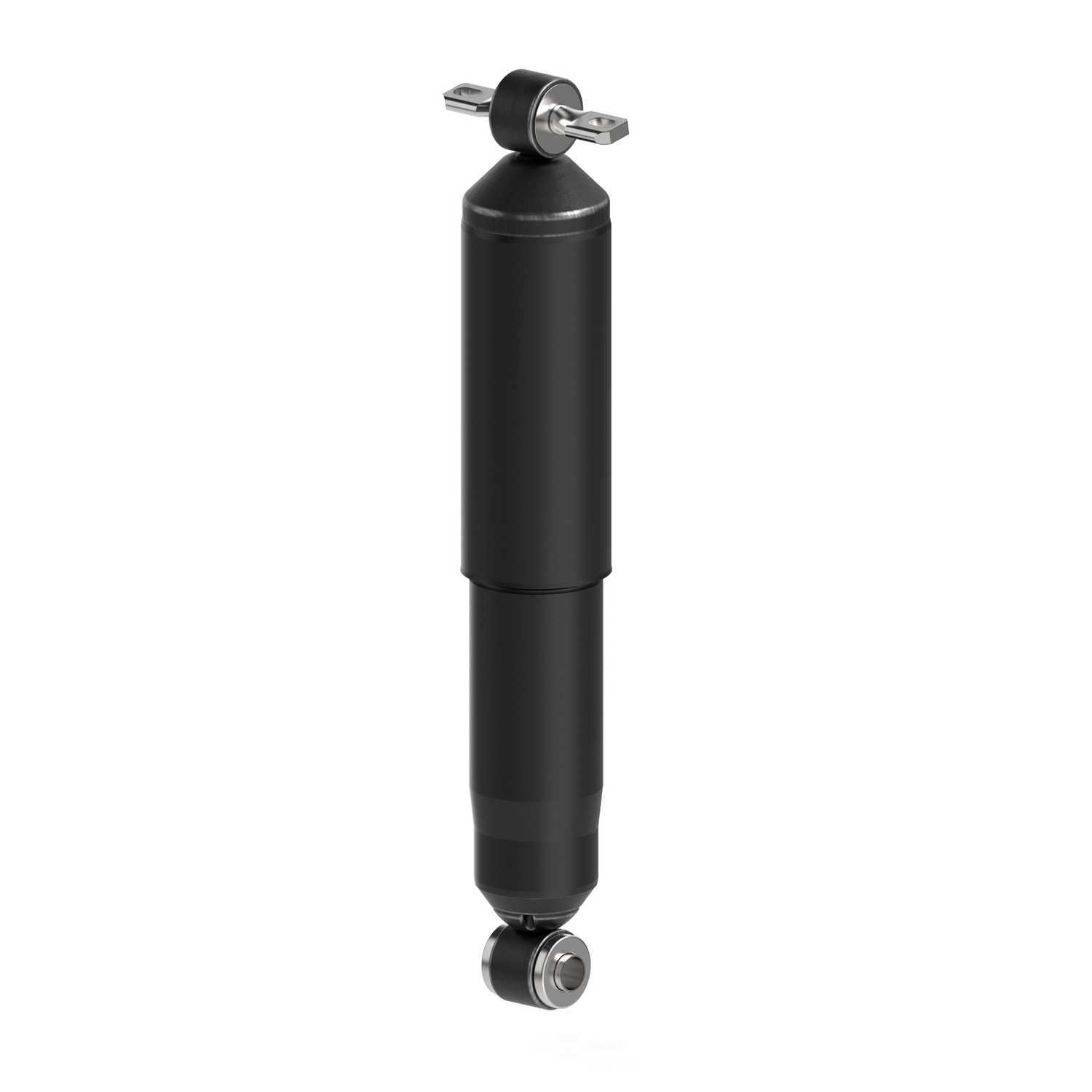

Gas-Magnum Rear Suspension Shock Absorber
MONROE SHOCKS/STRUTS
Part # : MON-34763
No prices availables
Select a store to see availability
Position: Rear
Free returns
Secure payment
Free In-Store Pickup
Product Details
DescriptionMonroe Gas-Magnum 34763 Rear Suspension Shock Absorber for Chevrolet Express 2500
Features
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Brand InformationDesigned for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.
Specifications
| Compressed Length | 14.625 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 23.875 |
| Gas Charged | Yes |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Lower Mount Code | LS47 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Travel Length | 9.25 |
| Upper Mount Code | XP7 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
