OESpectrum Front Suspension Shock Absorber
MONROE SHOCKS/STRUTS
Part # : MON-37122
No prices availables
Select a store to see availability
Free returns
Secure payment
Free In-Store Pickup
Product Details

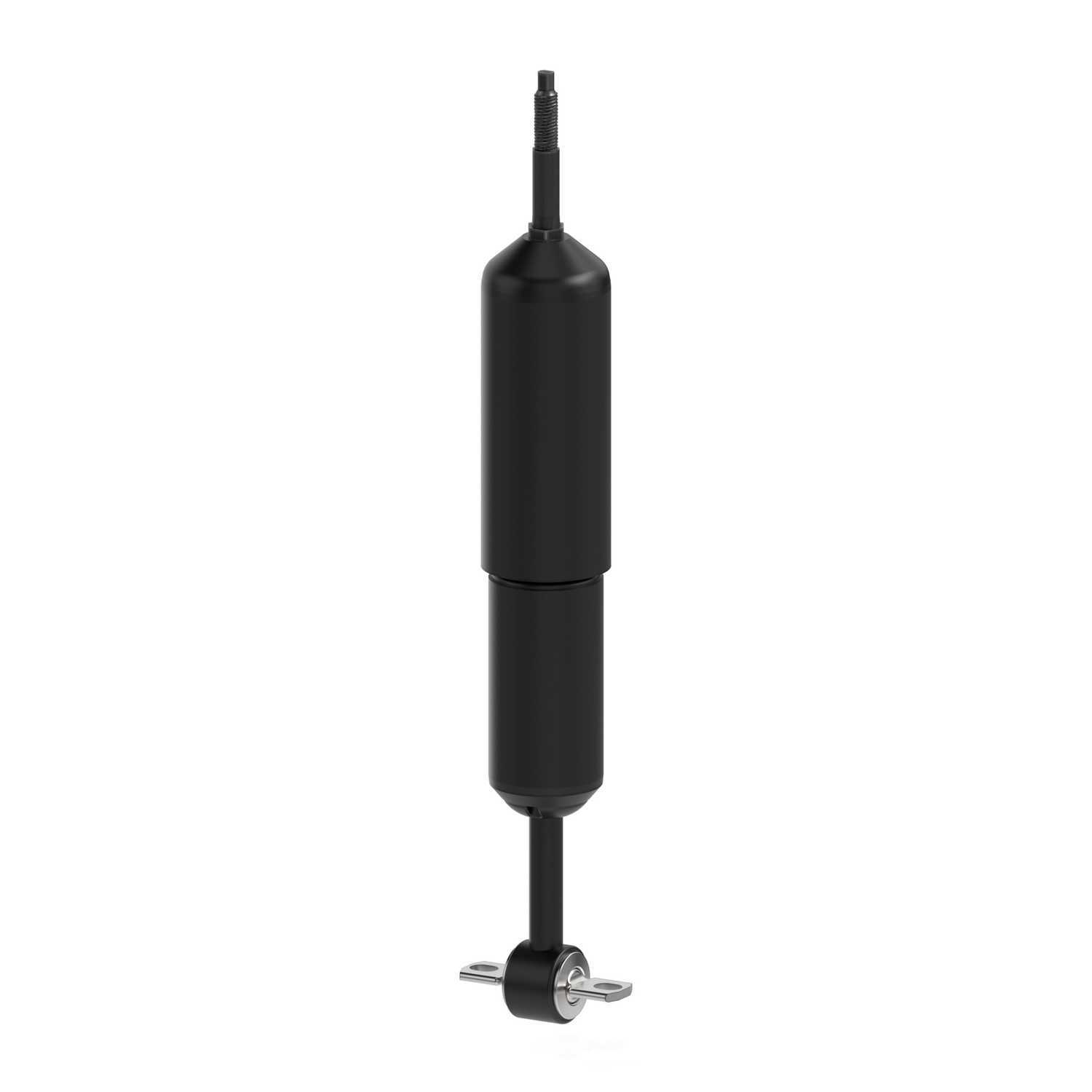

DescriptionMonroe OESpectrum 37122 Front Suspension Shock Absorber for Ford Ranger
Features
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Brand InformationDesigned to restore a vehicle’s original factory drivability and performance, Monroe® OESpectrum® light truck shock absorbers provide an exceptional level of handling precision and control while filtering out noise, vibration and harshness.
Specifications
| Compressed Length | 13.625 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 18 |
| Gas Charged | Yes |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Lower Mount Code | XP4 |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P01135,P00941 |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Travel Length | 4.375 |
| Upper Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
Compatibility
| Make | Model | Years |
|---|---|---|
| Ford | Explorer | 1995, 1996, 1997, 1998, 1999, 2000, 2001 |
| Ford | Explorer Sport | 2001, 2002, 2003 |
| Ford | Explorer Sport Trac | 2001, 2002, 2003, 2004, 2005 |
| Ford | Ranger | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 |
| Mazda | B3000 | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 |
| Mazda | B4000 | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| Mercury | Mountaineer | 1997, 1998, 1999, 2000, 2001 |
